| Availability: | |
|---|---|
| Quantity: | |

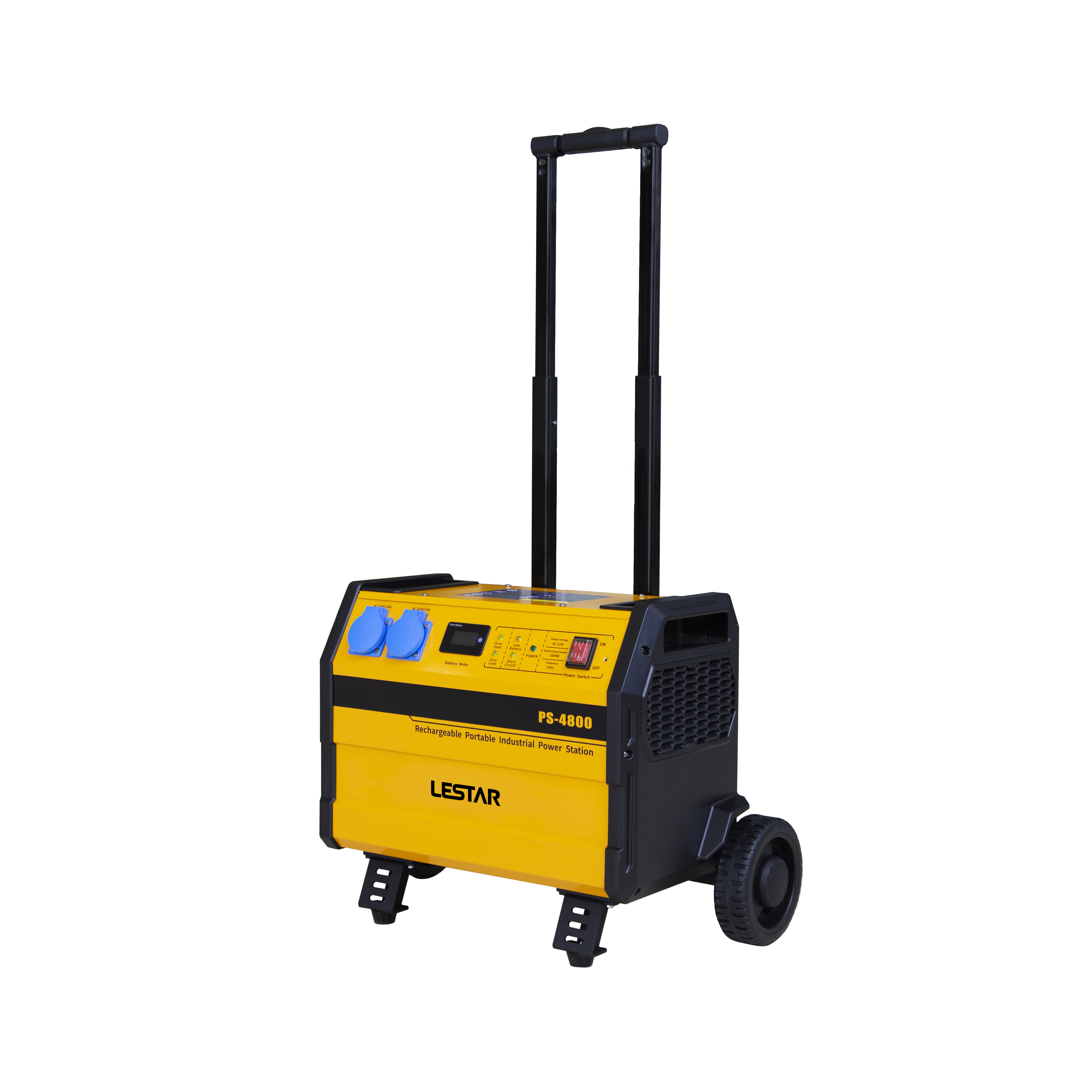

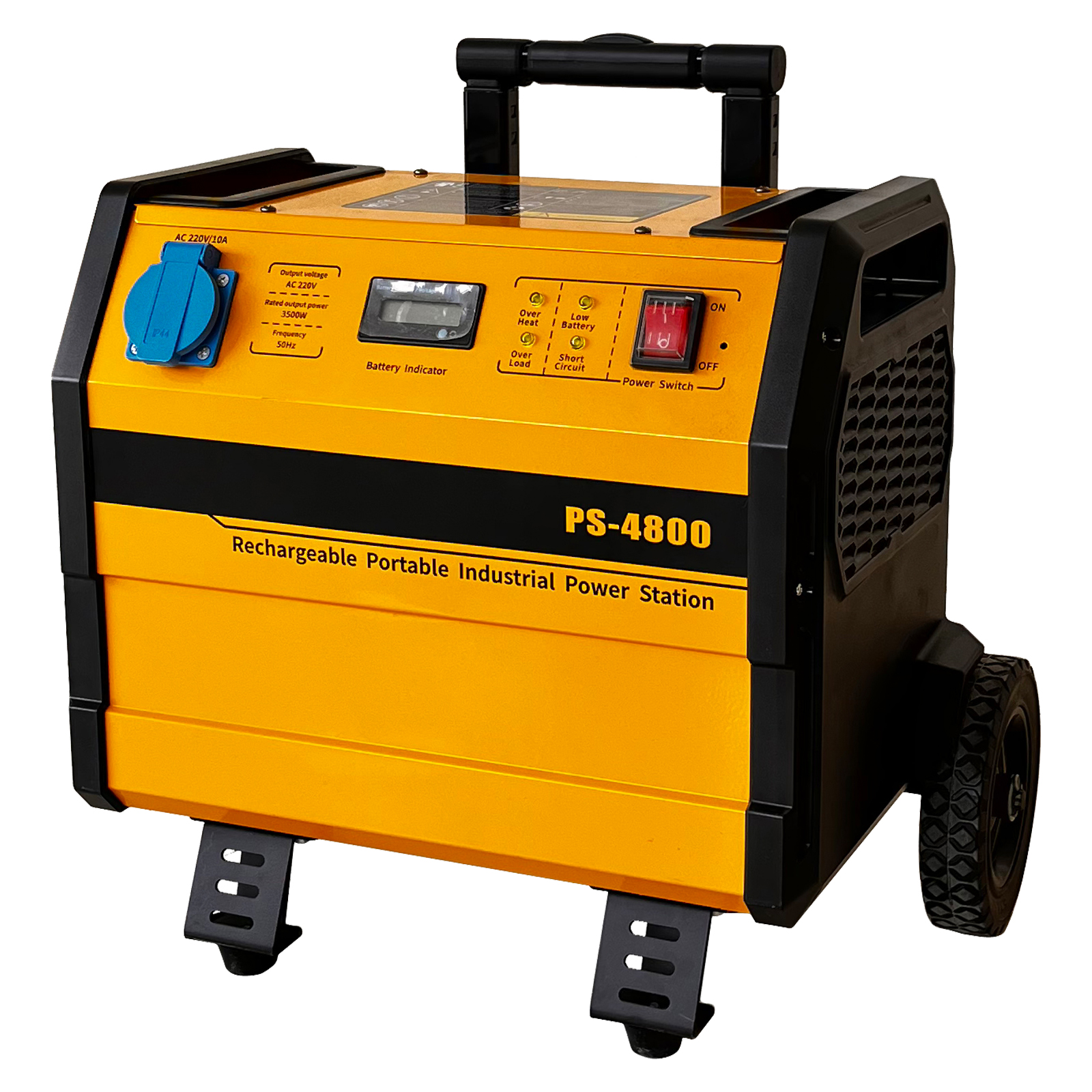

PS-4800
LESTAR
Power Specifications | |
Rated output voltage | AC 220 V 50 Hz |
Socket specification | 1 x EU type F (grounded) IP44, 1 x CEE type Socket 16A |
Rated output power | Max. 3,500 W |
Surge power | Max. 7,000 W |
Overload protection | (20 A) |
Battery Specifications | |
Battery type | Ternary Lithium Ion battery cell |
Battery voltage | DC 48 V |
Battery capacity | 2496 Wh |
Battery cooling | Air (2 x automatic air fans) |
Charger Specifications | |
Charger voltage | AC 100-240 V 50/60 Hz |
Charger output | 54.6 V (30 A) |
Charging time | ± 3.5 hours |
Charging cycles | 1,500 x (capacity > 80%) |
Working Temperatures | |
Operating temperature | -20°C up to 40°C |
Charging temperature | 0°C up to 30°C |
Storage temperature | 0°C up to 25°C |
Dimensions and Weight | |
Dimensions (L x W x H) | 460 x 300 x 410 mm |
Weight | 26 kg |
Other | |
Ingress protection class | IP21 (indoor) |
Warranty | 12 months or 300 charging cycles. Whichever comes first. |
Power Specifications | |
Rated output voltage | AC 220 V 50 Hz |
Socket specification | 1 x EU type F (grounded) IP44, 1 x CEE type Socket 16A |
Rated output power | Max. 3,500 W |
Surge power | Max. 7,000 W |
Overload protection | (20 A) |
Battery Specifications | |
Battery type | Ternary Lithium Ion battery cell |
Battery voltage | DC 48 V |
Battery capacity | 2496 Wh |
Battery cooling | Air (2 x automatic air fans) |
Charger Specifications | |
Charger voltage | AC 100-240 V 50/60 Hz |
Charger output | 54.6 V (30 A) |
Charging time | ± 3.5 hours |
Charging cycles | 1,500 x (capacity > 80%) |
Working Temperatures | |
Operating temperature | -20°C up to 40°C |
Charging temperature | 0°C up to 30°C |
Storage temperature | 0°C up to 25°C |
Dimensions and Weight | |
Dimensions (L x W x H) | 460 x 300 x 410 mm |
Weight | 26 kg |
Other | |
Ingress protection class | IP21 (indoor) |
Warranty | 12 months or 300 charging cycles. Whichever comes first. |
Battery Charger 15A AC 220-240V
Charging Cable
Instruction book
Battery Charger 15A AC 220-240V
Charging Cable
Instruction book
