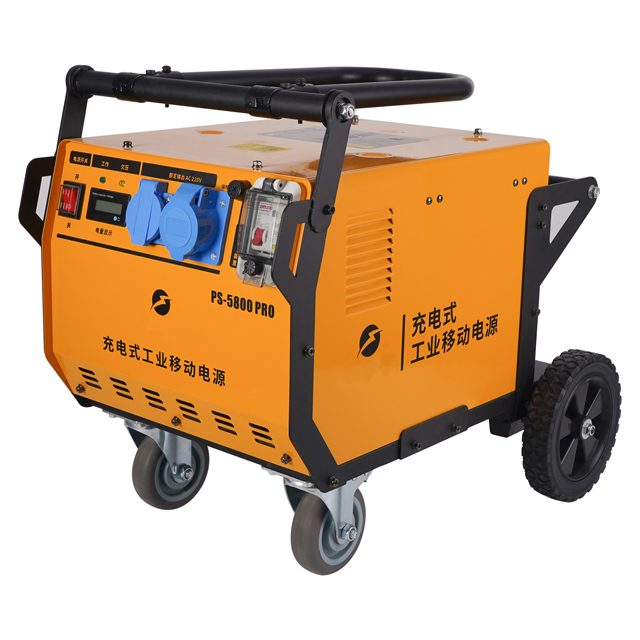

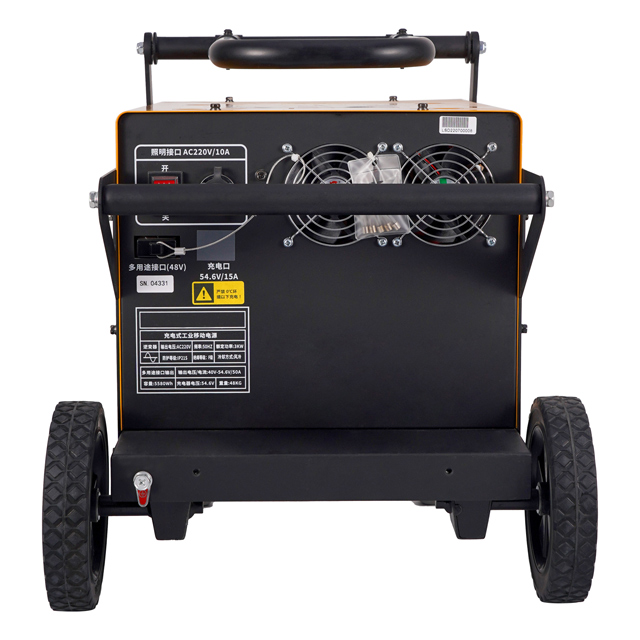

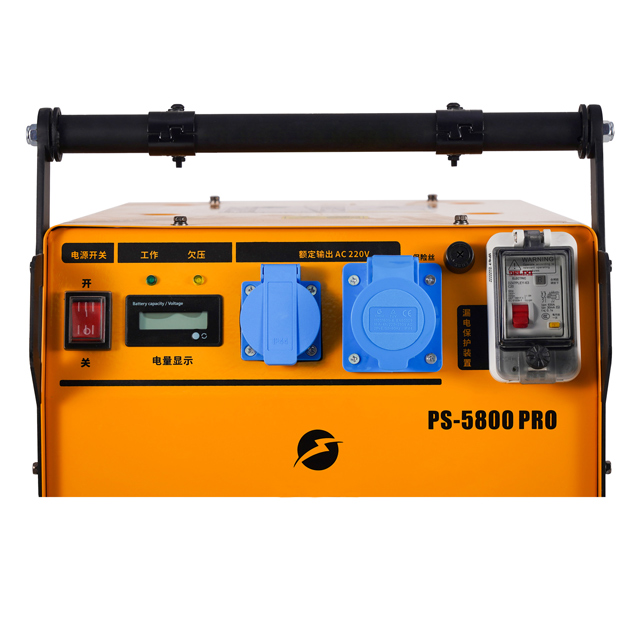

Zero Emission 3500W Battery Powered Generator Li-ion Battery Power Station

HEAVY-DUTY DESIGN 5435WH BATTERY POWER STATION, OUTPUT POWER 3500W

PS-5800 is heavy duty design with battery power capacity 5435Wh, compared with generator, its advantages including free of noise, no emissions, no need maintenance, output voltage 220V(110V optional) power 3500W, PS-5800 PRO is able to supply power for tools like angle grinder, marble cutter, rotary hammer, air compressor and other home appliances rated power less than 3500W.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

FEATURES

BATTERY POWERED

Completely battery-powered system, no long power cords, heavy cables or generators necessary.


PORTABLE DESIGN

Weight only 48KGS, max power output 3500W


SAFETY& RELIABILITY

Internal lithium battery cells we are working with CATL, CATL battery cells widely used in car industry, main customer including many famous brands such as BMW, Volkswagon, Toyota and Audi. Battery power system matters a lot in battery welder, we tried many different suppliers and finally we found CATL is the best choice for our welder.


ECO-FRIENDLY & NOISE FREE

Compared with traditional generators, PS-5800 PRO is surely eco-friendly and noise free. Besides, comparing the cost of gasoline and electricity, power station is nice choice.


INTELLIGENT

Battery power indicator Under-voltage, over-heating alarm


QUICK CHARGING

Equipped with high efficiency battery charger, charging time 4.0 hours only.


WARRANTY

All of our products, warranty period is 12 months, during warranty period, if any spare parts problem, we will afford the courier and spare cost.


Power Specifications

Rated output voltage

AC 220 V 50 Hz

Socket specification

1 x EU type F (grounded) IP44, 1 x CEE type Socket 16A

Rated output power

Max. 3,500 W

Surge power

Max. 7,000 W

Overload protection

(20 A)

Battery Specifications

Battery type

Ternary Lithium Ion battery cell

Battery voltage

DC 72 V

Battery capacity

5435 Wh

Battery cooling

Air (2 x automatic air fans)

Charger Specifications

Charger voltage

AC 100-240 V 50/60 Hz

Charger output

84 V (30 A)

Charging time

± 4.0 hours

Charging cycles

1,500 x (capacity > 80%)

Working Temperatures

Operating temperature

-20°C up to 40°C

Charging temperature

0°C up to 30°C

Storage temperature

0°C up to 25°C

Dimensions and Weight

Dimensions (L x W x H)

580 x 460 x 500 mm

Weight

48 kg

Other

Ingress protection class

IP21 (indoor)

Warranty

12 months or 300 charging cycles. Whichever comes first.


Battery Charger 20A AC 220-240V

Charging Cable

Instruction book

5 Pieces of fuse
