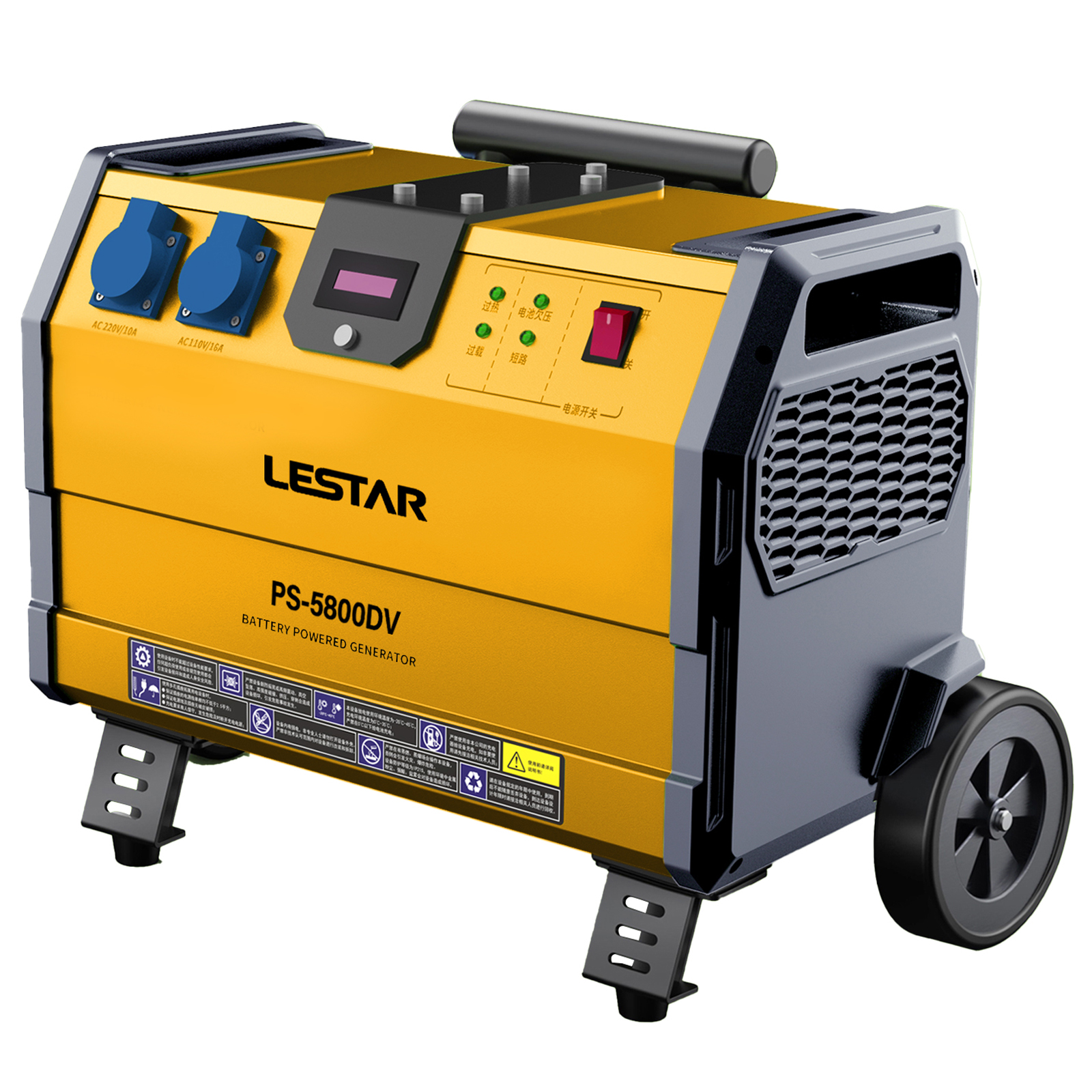

Dual-voltage Output Battery Power Station PS-5800DV

DUAL-VOLTAGE OUTPUT BATTERY POWER STATION 3.0KW

PS-5800DV is a dual-voltage output battery power station with max output power 3.0KW, output voltage can be 110V or 220V, mainly designed for countries like UK, Brasil, Bolivia, Colombia and Vietnam.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PS-5800DV

  • LESTAR

FEATURES

BATTERY POWERED

Completely battery-powered system - no long power cords, heavy cables or generators necessary.


DUAL-VOLTAGE OUTPUT

Suitable for different voltage of electric appliances, 110V or 220V optional, easy to operate


HEAVY-DUTY DESIGN

Max output power 3.0KW, battery capacity up to 5627Wh, pure sine wave, no harm to electric appliances.


SAFETY & RELIABILITY

Internal lithium battery cells we are working with CATL, CATL battery cells widely used in car industry, main customer including many famous brands such as BMW, Volkswagon, Toyota and Audi. Battery power system matters a lot in battery welder, we tried many different suppliers and finally we found CATL is the best choice for our welder.


CE CERTIFICATE

PS-5800DV already got CE certificate, European countries marketing already under developing, also we got BSCI, ISO 9001 approval.


INTELLIGENT

Battery power indicator

Under-voltage, over-heating alarm.


QUICK CHARGING

Equipped with high efficiency battery charger, charging time 4.0-4.5 hours only.


WARRANTY

All of our products, warranty period is 12 months, during warranty period, if any spare parts problem, we will afford the courier and spare cost.


Power Specifications

Rated output voltage

AC 220V 50 Hz & AC 110V 60Hz

Socket specification

1 x EU type F (grounded) IP44, 1 x CEE type Socket 16A

Rated output power

Max. 3,000 W

Surge power

Max. 6,000 W

Overload protection

(20 A)

Battery Specifications

Battery type

Ternary Lithium Ion battery cell

Battery voltage

DC 72 V

Battery capacity

5627 Wh

Battery cooling

Air (2 x automatic air fans)

Charger Specifications

Charger voltage

AC 100-240 V 50/60 Hz

Charger output

84 V (30 A)

Charging time

± 4.0 hours

Charging cycles

1,500 x (capacity > 80%)

Working Temperatures

Operating temperature

-20°C up to 40°C

Charging temperature

0°C up to 30°C

Storage temperature

0°C up to 25°C

Dimensions and Weight

Dimensions (L x W x H)

580 x 460 x 500 mm

Weight

51 kg

Other

Ingress protection class

IP21 (indoor)

Warranty

12 months or 300 charging cycles. Whichever comes first.



Battery Charger 20A Input Power AC 110-240V

Charging Cable

Instruction book
