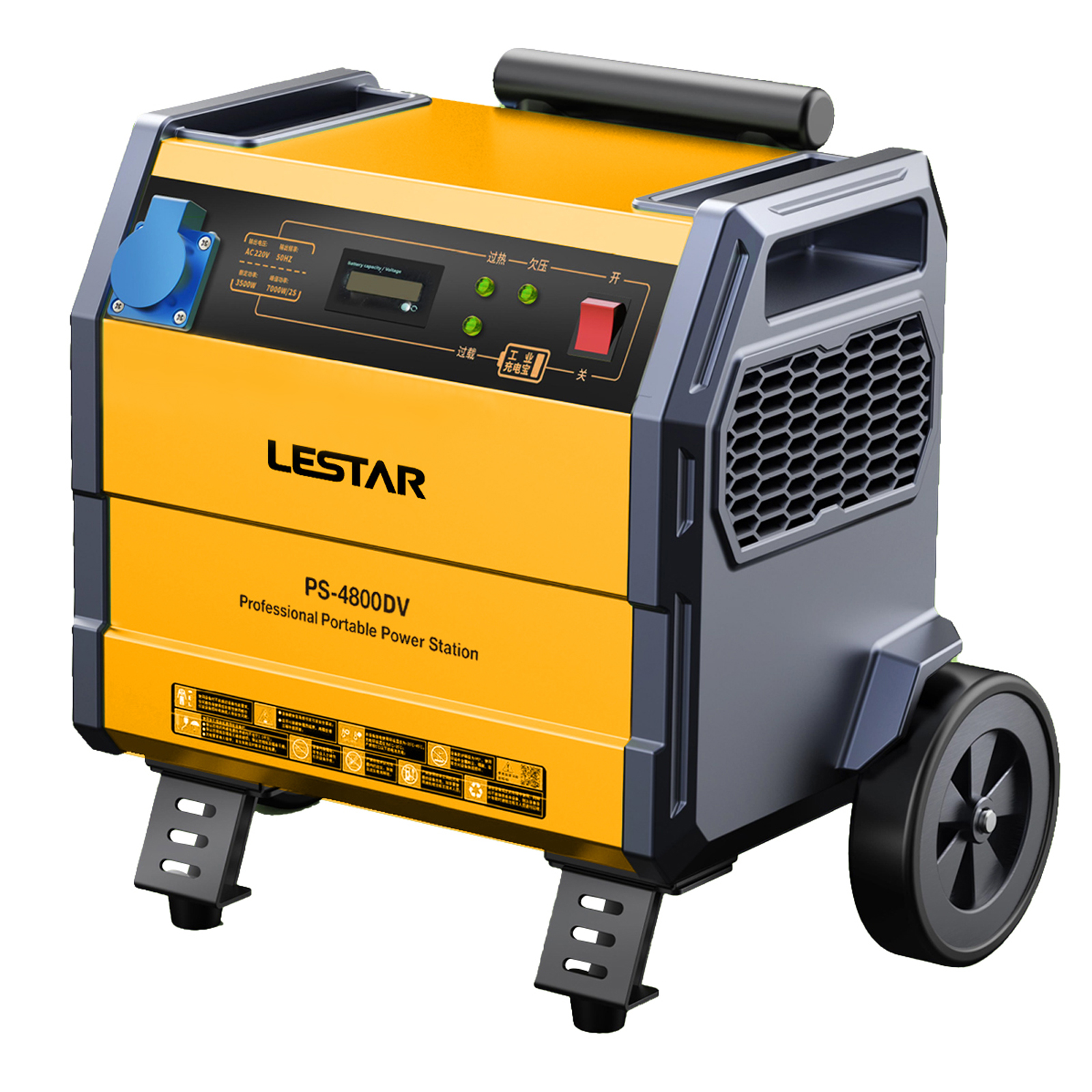

PS-4800DV
LESTAR
FEATURES
BATTERY POWERED
Completely battery-powered system - no long power cords, heavy cables or generators necessary.
DUAL-VOLTAGE OUTPUT
Suitable for different voltage of electric appliances, 110V or 220V optional, easy to operate
HEAVY-DUTY DESIGN
Max output power 3.0KW, battery capacity up to 2405Wh, pure sine wave, no harm to electric appliances.
SAFETY & RELIABILITY
Internal lithium battery cells we are working with CATL, CATL battery cells widely used in car industry, main customer including many famous brands such as BMW, Volkswagon, Toyota and Audi. Battery power system matters a lot in battery welder, we tried many different suppliers and finally we found CATL is the best choice for our welder.
CE CERTIFICATE
PS-4800DV already got CE certificate, European countries marketing already under developing, also we got BSCI, ISO 9001 approval.
INTELLIGENT
Battery power indicator
Under-voltage, over-heating alarm.
QUICK CHARGING
Equipped with high efficiency battery charger, charging time 3.0-3.5 hours only.
WARRANTY
All of our products, warranty period is 12 months, during warranty period, if any spare parts problem, we will afford the courier and spare cost.
FEATURES
BATTERY POWERED
Completely battery-powered system - no long power cords, heavy cables or generators necessary.
DUAL-VOLTAGE OUTPUT
Suitable for different voltage of electric appliances, 110V or 220V optional, easy to operate
HEAVY-DUTY DESIGN
Max output power 3.0KW, battery capacity up to 2405Wh, pure sine wave, no harm to electric appliances.
SAFETY & RELIABILITY
Internal lithium battery cells we are working with CATL, CATL battery cells widely used in car industry, main customer including many famous brands such as BMW, Volkswagon, Toyota and Audi. Battery power system matters a lot in battery welder, we tried many different suppliers and finally we found CATL is the best choice for our welder.
CE CERTIFICATE
PS-4800DV already got CE certificate, European countries marketing already under developing, also we got BSCI, ISO 9001 approval.
INTELLIGENT
Battery power indicator
Under-voltage, over-heating alarm.
QUICK CHARGING
Equipped with high efficiency battery charger, charging time 3.0-3.5 hours only.
WARRANTY
All of our products, warranty period is 12 months, during warranty period, if any spare parts problem, we will afford the courier and spare cost.
Power Specifications | |
Rated output voltage | AC 220V 50 Hz & AC 110V 60Hz |
Socket specification | 1 x EU type F (grounded) IP44, 1 x CEE type Socket 16A |
Rated output power | Max. 3,000 W |
Surge power | Max. 6,000 W |
Overload protection | (20 A) |
Battery Specifications | |
Battery type | Ternary Lithium Ion battery cell |
Battery voltage | DC 48 V |
Battery capacity | 2496 Wh |
Battery cooling | Air (2 x automatic air fans) |
Charger Specifications | |
Charger voltage | AC 100-240 V 50/60 Hz |
Charger output | 84 V (20 A) |
Charging time | ± 4.0 hours |
Charging cycles | 1,500 x (capacity > 80%) |
Working Temperatures | |
Operating temperature | -20°C up to 40°C |
Charging temperature | 0°C up to 30°C |
Storage temperature | 0°C up to 25°C |
Dimensions and Weight | |
Dimensions (L x W x H) | 460 x 300 x 410 mm |
Weight | 26.4 kg |
Other | |
Ingress protection class | IP21 (indoor) |
Warranty | 12 months or 300 charging cycles. Whichever comes first. |
Power Specifications | |
Rated output voltage | AC 220V 50 Hz & AC 110V 60Hz |
Socket specification | 1 x EU type F (grounded) IP44, 1 x CEE type Socket 16A |
Rated output power | Max. 3,000 W |
Surge power | Max. 6,000 W |
Overload protection | (20 A) |
Battery Specifications | |
Battery type | Ternary Lithium Ion battery cell |
Battery voltage | DC 48 V |
Battery capacity | 2496 Wh |
Battery cooling | Air (2 x automatic air fans) |
Charger Specifications | |
Charger voltage | AC 100-240 V 50/60 Hz |
Charger output | 84 V (20 A) |
Charging time | ± 4.0 hours |
Charging cycles | 1,500 x (capacity > 80%) |
Working Temperatures | |
Operating temperature | -20°C up to 40°C |
Charging temperature | 0°C up to 30°C |
Storage temperature | 0°C up to 25°C |
Dimensions and Weight | |
Dimensions (L x W x H) | 460 x 300 x 410 mm |
Weight | 26.4 kg |
Other | |
Ingress protection class | IP21 (indoor) |
Warranty | 12 months or 300 charging cycles. Whichever comes first. |
Battery Charger 20A Input Power AC 110-240V
Charging Cable
Instruction book
Battery Charger 20A Input Power AC 110-240V
Charging Cable
Instruction book
