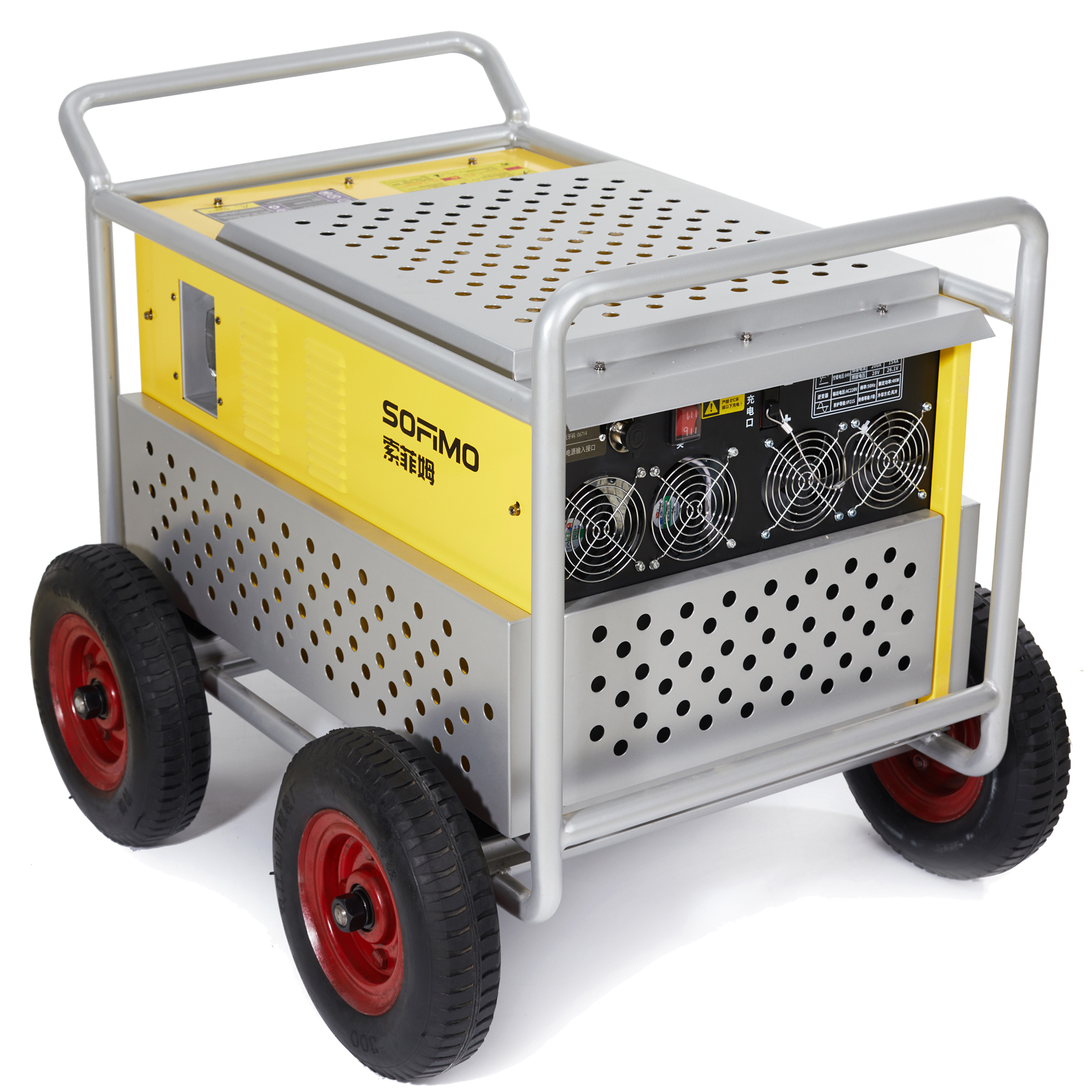

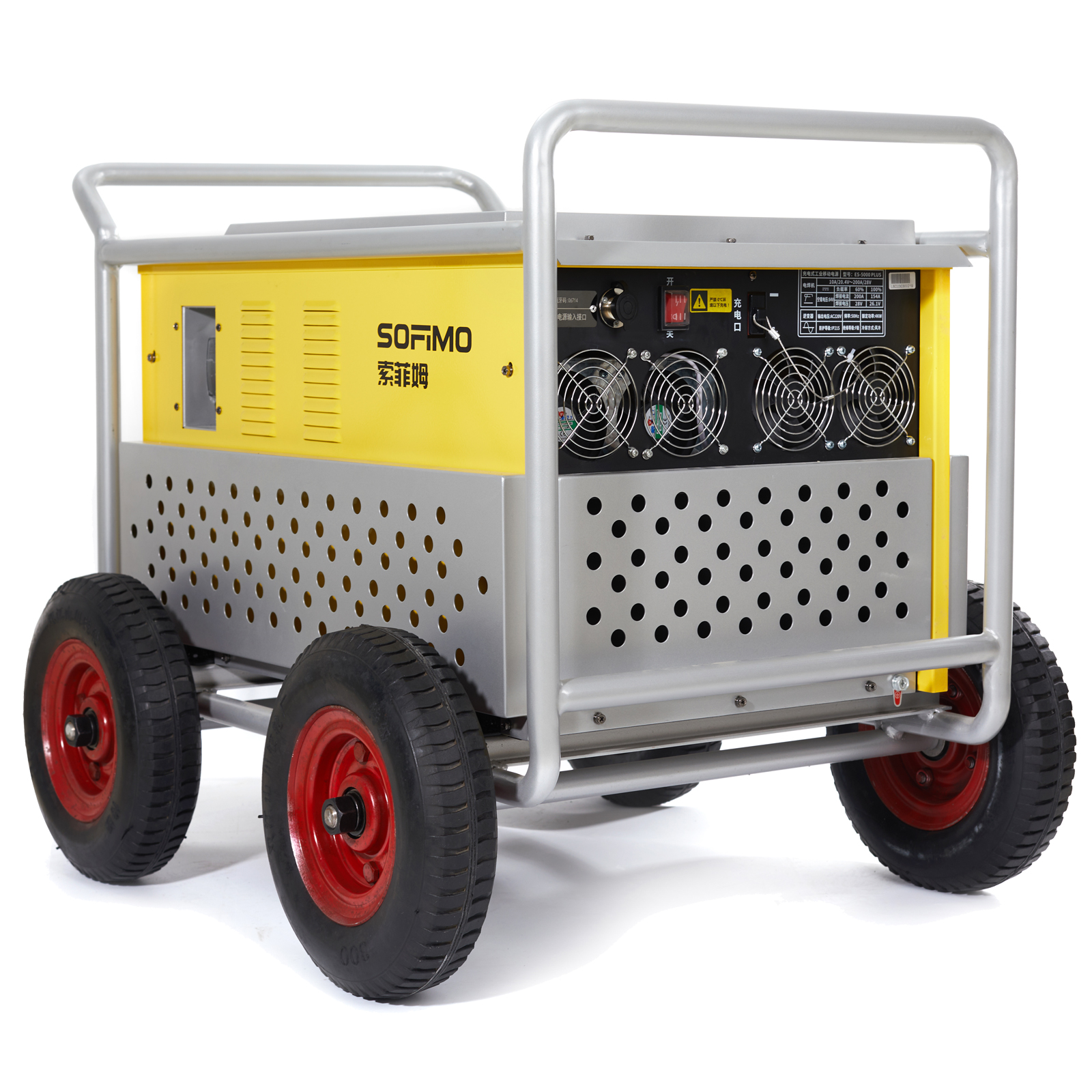

ES-5000 PLUS
LESTAR
FEATURES
BATTERY POWERED
Completely battery-powered system - no long power cords, heavy cables or generators necessary.
HEAVY-DUTY DESIGN
Battery capacity up to 11470Wh, max power output 4000W
WELDING FUNCTION MMA & TIG
Max output current 200A, suitable for electrode diameter 2.5mm-5.0mm.
SAFETY& RELIABILITY
Internal lithium battery cells we are working with CATL, CATL battery cells widely used in car industry, main customer including many famous brands such as BMW, Volkswagon, Toyota and Audi. Battery power system matters a lot in battery welder, we tried many different suppliers and finally we found CATL is the best choice for our welder.
ECO-FRIENDLY & NOISE FREE
Compared with traditional generators, ES-5000 PLUS is surely eco-friendly and noise free. Besides, comparing the cost of gasoline and electricity, power station is nice choice.
INTELLIGENT
Battery power indicator Under-voltage, over-heating alarm
QUICK CHARGING
Equipped with high efficiency battery charger, charging time 5.5 hours only.
WARRANTY
All of our products, warranty period is 12 months, during warranty period, if any spare parts problem, we will afford the courier and spare cost.
FEATURES
BATTERY POWERED
Completely battery-powered system - no long power cords, heavy cables or generators necessary.
HEAVY-DUTY DESIGN
Battery capacity up to 11470Wh, max power output 4000W
WELDING FUNCTION MMA & TIG
Max output current 200A, suitable for electrode diameter 2.5mm-5.0mm.
SAFETY& RELIABILITY
Internal lithium battery cells we are working with CATL, CATL battery cells widely used in car industry, main customer including many famous brands such as BMW, Volkswagon, Toyota and Audi. Battery power system matters a lot in battery welder, we tried many different suppliers and finally we found CATL is the best choice for our welder.
ECO-FRIENDLY & NOISE FREE
Compared with traditional generators, ES-5000 PLUS is surely eco-friendly and noise free. Besides, comparing the cost of gasoline and electricity, power station is nice choice.
INTELLIGENT
Battery power indicator Under-voltage, over-heating alarm
QUICK CHARGING
Equipped with high efficiency battery charger, charging time 5.5 hours only.
WARRANTY
All of our products, warranty period is 12 months, during warranty period, if any spare parts problem, we will afford the courier and spare cost.
Power Specifications | |
Rated output voltage | AC 220 V 50 Hz |
Socket specification | 1 x EU type F (grounded) IP44, 1 x CEE type Socket 16A |
Rated output power | Max. 4,000 W |
Surge power | Max. 8,000 W |
Overload protection | (20 A) |
Battery Specifications | |
Battery type | Ternary Lithium Ion battery cell |
Battery voltage | DC 72 V |
Battery capacity | 11470 Wh |
Battery cooling | Air (4 x automatic air fans) |
Welding Specifications | |
Output current | 10-200A |
Suitable electrode diameter | 1.6-5.0mm |
Pieces 4.0mm electrode | 125 pieces |
Pieces 3.2mm electrode | 203 pieces |
Charger Specifications | |
Charger voltage | AC 200-240 V 50/60 Hz |
Charger output | 84 V (30 A) |
Charging time | ± 5.5 hours |
Charging cycles | 1,500 x (capacity > 80%) |
Working Temperatures | |
Operating temperature | -20°C up to 40°C |
Charging temperature | 0°C up to 30°C |
Storage temperature | 0°C up to 25°C |
Dimensions and Weight | |
Dimensions (L x W x H) | 800 x 700 x 700 mm |
Weight | 130 kg |
Other | |
Ingress protection class | IP21 (indoor) |
Warranty | 12 months or 300 charging cycles. Whichever comes first. |
Power Specifications | |
Rated output voltage | AC 220 V 50 Hz |
Socket specification | 1 x EU type F (grounded) IP44, 1 x CEE type Socket 16A |
Rated output power | Max. 4,000 W |
Surge power | Max. 8,000 W |
Overload protection | (20 A) |
Battery Specifications | |
Battery type | Ternary Lithium Ion battery cell |
Battery voltage | DC 72 V |
Battery capacity | 11470 Wh |
Battery cooling | Air (4 x automatic air fans) |
Welding Specifications | |
Output current | 10-200A |
Suitable electrode diameter | 1.6-5.0mm |
Pieces 4.0mm electrode | 125 pieces |
Pieces 3.2mm electrode | 203 pieces |
Charger Specifications | |
Charger voltage | AC 200-240 V 50/60 Hz |
Charger output | 84 V (30 A) |
Charging time | ± 5.5 hours |
Charging cycles | 1,500 x (capacity > 80%) |
Working Temperatures | |
Operating temperature | -20°C up to 40°C |
Charging temperature | 0°C up to 30°C |
Storage temperature | 0°C up to 25°C |
Dimensions and Weight | |
Dimensions (L x W x H) | 800 x 700 x 700 mm |
Weight | 130 kg |
Other | |
Ingress protection class | IP21 (indoor) |
Warranty | 12 months or 300 charging cycles. Whichever comes first. |
Battery Charger 20A AC 220V
Charging Cable
Welding Connectors 35-50MM2
Instruction book
Heavy-duty earth clamp 3 meters
Heavy-duty welding holder 3 meters
Battery Charger 20A AC 220V
Charging Cable
Welding Connectors 35-50MM2
Instruction book
Heavy-duty earth clamp 3 meters
Heavy-duty welding holder 3 meters
