150A Portable Battery Powered Stick Welding Machine

The demand for battery powered welding machine has risen exponentially in recent years. The need for a portable, lightweight welding machine that is capable of welding without a direct electrical power supply is all too common. Maintenance applications, repair welding, on-site welding, installation works & many more jobs call for a battery powered welding machine.

Quantity:
Availability:





Inquire Add to Basket

Model:
ES-80
Brand:
LESTAR

LESTAR ES-80 BATTERY POWERED WELDING MACHINE MAIN FEATURES

Extremely Portable
Simple Controls
Convenient Backpack Design
Perfect starts, no sticking
Up to 150A output current, max 3.2mm electrodes available
3 year parts and labor warranty*

battery powered welding machine Battery Powered Stick Welding Machine stick welding machine Battery welding machine portable battery powered welding machine Portable welding machine

Product Category

Related Products

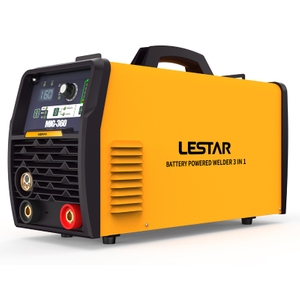

100A MIG-320 Portable Cordless Battery-Powered Mig Welder

IP54 Portable Li-ion Battery Powered Welding Generator 150A

LESTAR Portable Cordless Battery Powered Stick Inverter Welder 150A

LESTAR ES-6000 LITHIUM ION BATTERY POWERED WELDING GENERATOR WELDER

LESTAR AK-330 Cordless Battery Powered Inverter Arc Welder

LESTAR ES-5000 PLUS BATTERY POWERED WELDER

LESTAR ES-5000 LITHIUM ION BATTERY POWERED WELDING GENERATOR WELDER

Safely Intelligent Detection Battery Powered Welding Generator 200

LESTAR AK-370 150A RECHARGEABLE BATTERY POWERED INVERTER WELDER

Battery Specifications
Battery type	Lithium iron phosphate battery cell
Battery voltage	DC 48 V
Battery capacity	870 Wh
Battery cooling	Air (2 x automatic air fans)
Welding Specifications
Output current	10-150A
Suitable electrode diameter	1.6-3.2mm
Duty Cycle	100% @ 150A
Pieces 2.5mm electrode	23 pieces
Pieces 3.2mm electrode	11 pieces
Charger Specifications
Charger voltage	AC 100-240 V 50/60 Hz
Charger output	54.6 V (8 A)
Charging time	± 2.0 hours
Charging cycles	3,500 (capacity > 80%)
Working Temperatures
Operating temperature	-20°C up to 40°C
Charging temperature	0°C up to 30°C
Storage temperature	0°C up to 25°C
Dimensions and Weight
Dimensions (L x W x H)	370 x 130 x 340 mm
Weight	12.5 kg
Other
Ingress protection class	IP21 (indoor)
Warranty	12 months or 300 charging cycles. Whichever comes first.

Battery Specifications
Battery type	Lithium iron phosphate battery cell
Battery voltage	DC 48 V
Battery capacity	870 Wh
Battery cooling	Air (2 x automatic air fans)
Welding Specifications
Output current	10-150A
Suitable electrode diameter	1.6-3.2mm
Duty Cycle	100% @ 150A
Pieces 2.5mm electrode	23 pieces
Pieces 3.2mm electrode	11 pieces
Charger Specifications
Charger voltage	AC 100-240 V 50/60 Hz
Charger output	54.6 V (8 A)
Charging time	± 2.0 hours
Charging cycles	3,500 (capacity > 80%)
Working Temperatures
Operating temperature	-20°C up to 40°C
Charging temperature	0°C up to 30°C
Storage temperature	0°C up to 25°C
Dimensions and Weight
Dimensions (L x W x H)	370 x 130 x 340 mm
Weight	12.5 kg
Other
Ingress protection class	IP21 (indoor)
Warranty	12 months or 300 charging cycles. Whichever comes first.
