29.9kWh High-Capacity Lithium Battery

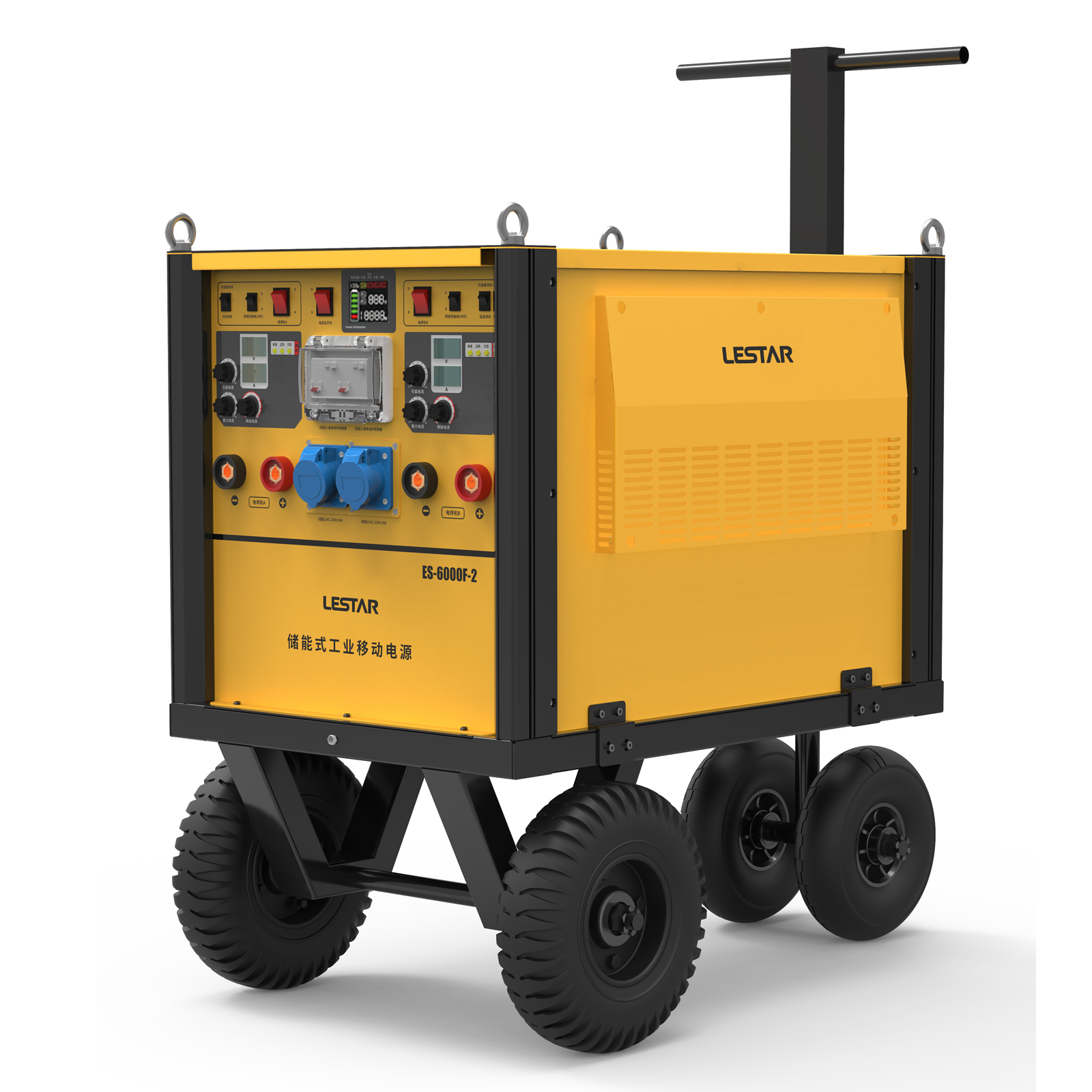

The ES-6000F-2 is equipped with a 29,892Wh high-capacity lithium battery system, providing extended operating time for welding and electrical equipment.

The battery is designed for a long service life of approximately 8–10 years, helping reduce maintenance and replacement costs for long-term industrial applications.

Dual-Operator Welding System

The dual welding station design allows two operators to perform welding operations simultaneously.

This configuration is ideal for construction, fabrication, repair, installation, and maintenance applications where multiple welding operators need to work at the same time.

Two welding stations. One integrated power system. Higher jobsite productivity.

220V / 5000W Pure Sine Wave AC Output

In addition to welding, the ES-6000F-2 provides 220V / 5000W pure sine wave AC power for a wide range of electrical equipment.

The AC power output can be used to operate:

• Power tools

• Electric drills

• Grinders

• Lighting equipment

• Pumps

• Testing equipment

• Construction equipment

• Other compatible 220V electrical appliances

The pure sine wave output provides stable and reliable AC power for sensitive electrical and electronic equipment.

Simultaneous Welding and Power Supply

Unlike a conventional battery welding machine, the ES-6000F-2 integrates welding and AC power supply into a single system.

Operators can use the welding system while simultaneously supplying 220V AC power to other equipment, helping reduce the need for separate generators, battery packs, and welding machines on the jobsite.

MMA & TIG Welding

The ES-6000F-2 delivers low-ripple DC welding current for stable welding performance.

It supports:

• MMA / Stick Welding

• TIG Welding

The system is suitable for welding stainless steel and low-alloy steel, making it suitable for a variety of industrial and maintenance applications.

Battery Heating for Cold-Weather Charging

The integrated battery heating system helps enable battery charging in extremely cold environments.

This feature improves battery usability in low-temperature working conditions and helps protect the battery system during cold-weather charging.

Comprehensive Safety Protection

The ES-6000F-2 incorporates multiple protection functions to improve system safety and reliability, including:

• Under-voltage protection

• Over-current protection

• Overload protection

• Short-circuit protection

• Over-temperature protection

• Leakage protection

• External overload protection

These protection systems help reduce the risk of equipment damage caused by abnormal operating conditions.

Built-in Fire Suppression System

The ES-6000F-2 is equipped with a built-in fire suppression system designed to respond rapidly in the event of an electrical short circuit or other abnormal electrical conditions.

This additional safety feature provides an extra layer of protection for the integrated battery and electrical system.
