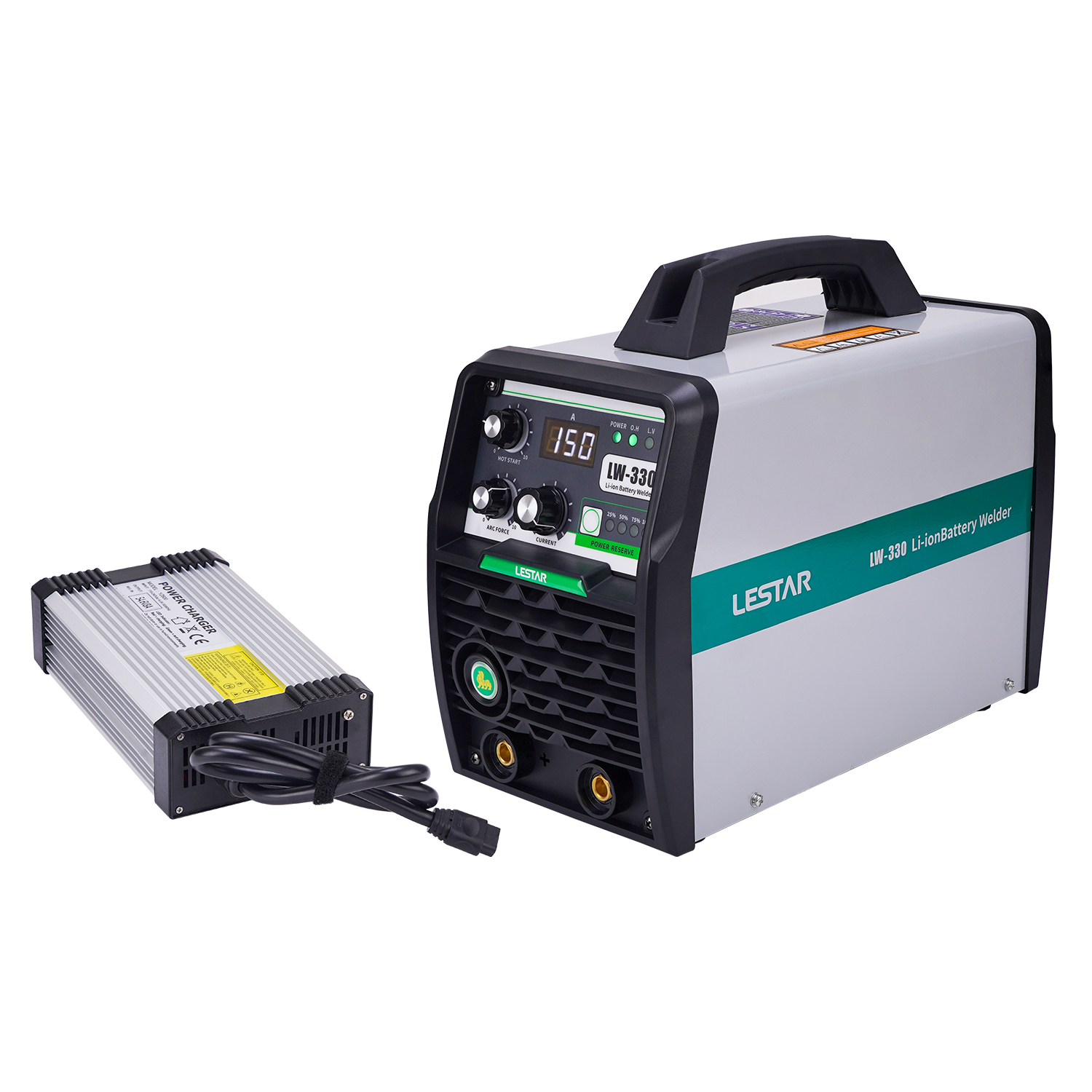

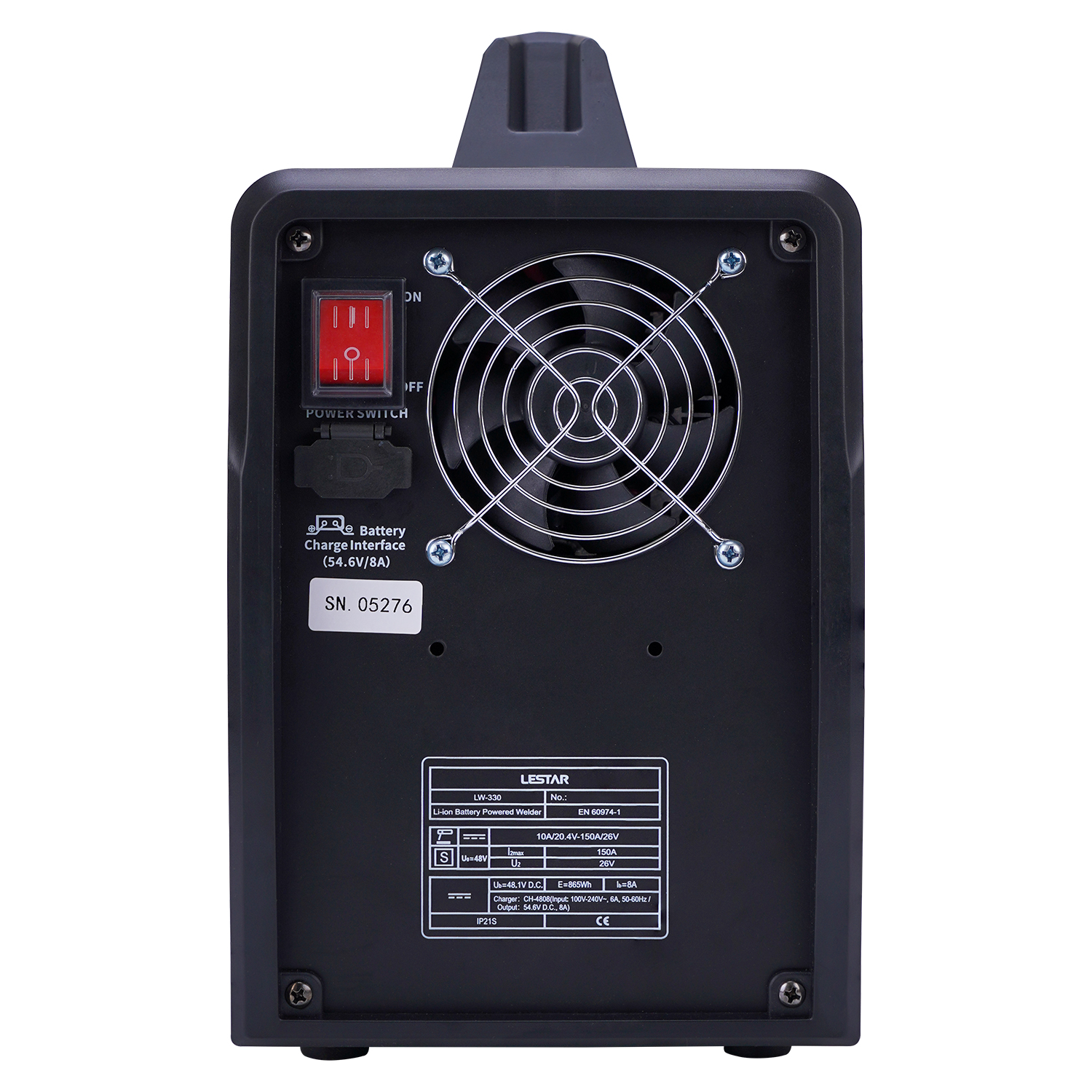

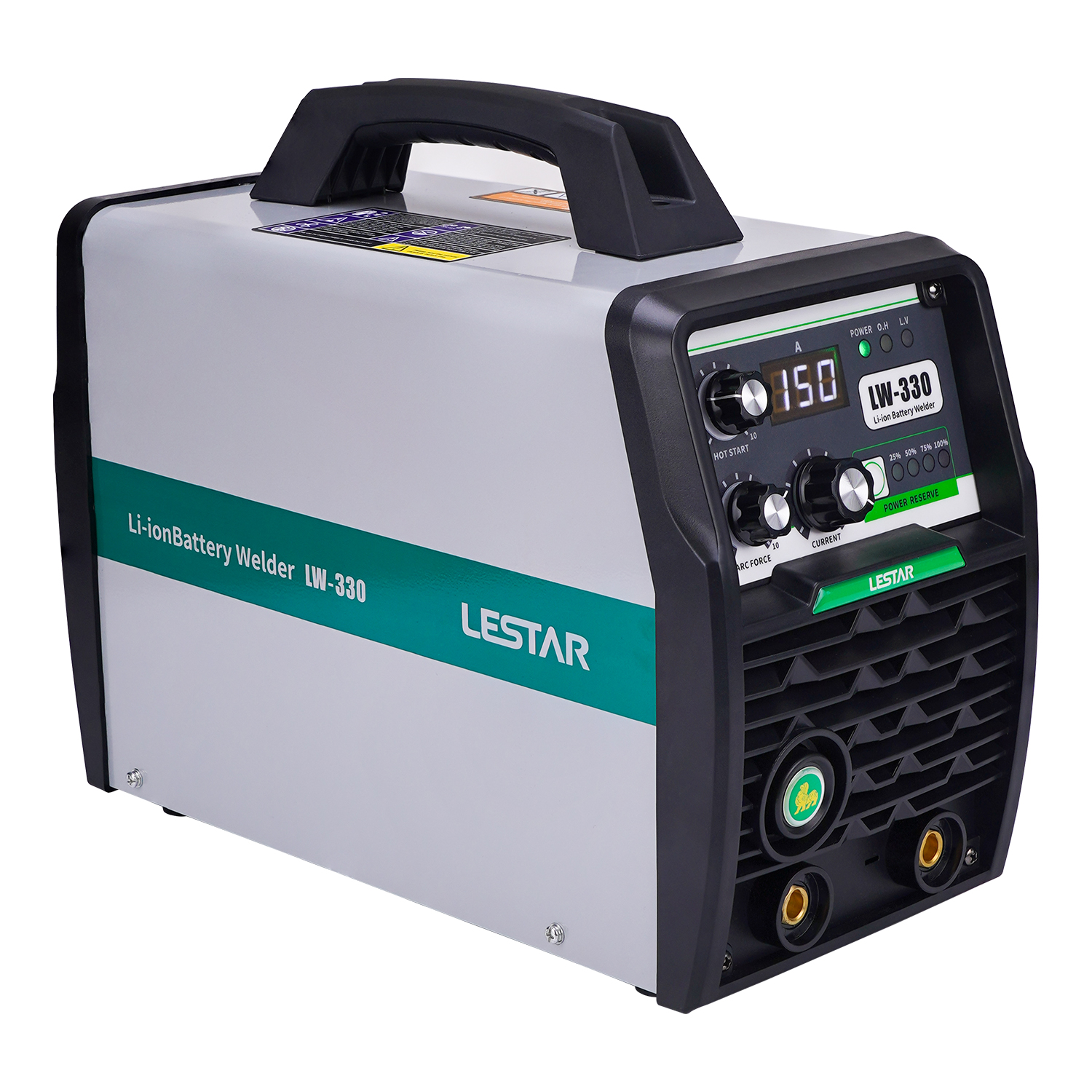

Outdoor 150A Intelligent Portable Battery Powered Inverter Welder

AK-330 Battery Powered Welder, max output current 150A, weight only 11.50kgs, portable and convenient design.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • AK-330

  • LESTAR

PORTABLE DESIGN

AK-330 battery powered welder weight only 11.50kgs, especially suitable for places where main power is not available and for welding job in electrically hazardous environment


BATTERY POWERED WELDER

Completely li-ion battery powered welder system, no long power cords, heavy cables or generators necessary.


HEAVY-DUTY DESIGNED

3.25mm electrodes can weld up to 11 pieces.

2.5mm electrodes can weld up to 23 pieces.


SAFETY & RELIABILITY

AK-330 Battery powered welder internal lithium battery cells we are working with CATL, CATL battery cells widely used in car industry, main customer including many famous brands such as BMW, Volkswagon, Toyota and Audi. Battery power system matters a lot in battery welder, we tried many different suppliers and finally we found CATL is the best choice for our welder.


CE CERTIFICATE

AK-330 battery powered welder already got CE certificate, European countries marketing already under developing, also we got BSCI, ISO 9001 approval.


HOT-START & ARC FORCE

Both functions ensures easy welding and excellent welding performance.


INTELLIGENT

Battery power indicator

Under-voltage, over-heating alarm.


QUICK CHARGING

Equipped with high efficiency battery charger, charging time 2.0-2.5 hours only.


WARRANTY

All of our products, warranty period is 12 months, during warranty period, if any spare parts problem, we will afford the courier and spare cost.



Battery Specifications

Battery type

Ternary Lithium Ion battery cell

Battery voltage

DC 48 V

Battery capacity

865 Wh

Battery cooling

Air (2 x automatic air fans)

Welding Specifications

Output current

10-150A

Suitable electrode diameter

1.6-4.0mm

Duty Cycle

100% @ 150A

Pieces 2.5mm electrode

23 pieces

Pieces 3.2mm electrode

11 pieces

Charger Specifications

Charger voltage

AC 100-240 V 50/60 Hz

Charger output

54.6 V (10 A)

Charging time

± 2.0 hours

Charging cycles

2,000 (capacity > 80%)

Working Temperatures

Operating temperature

-20°C up to 40°C

Charging temperature

0°C up to 30°C

Storage temperature

0°C up to 25°C

Dimensions and Weight

Dimensions (L x W x H)

375 x 178 x 300 mm

Weight

11.5 kg

Other

Ingress protection class

IP21 (indoor)

Warranty

12 months or 300 charging cycles. Whichever comes first.


Battery Charger 10A AC 110-240V

Charging Cable

Welding Connectors 35-50MM2

Instruction book

Heavy-duty earth clamp 3 meters(Optional)

Heavy-duty welding holder 5 meters(Optional)
