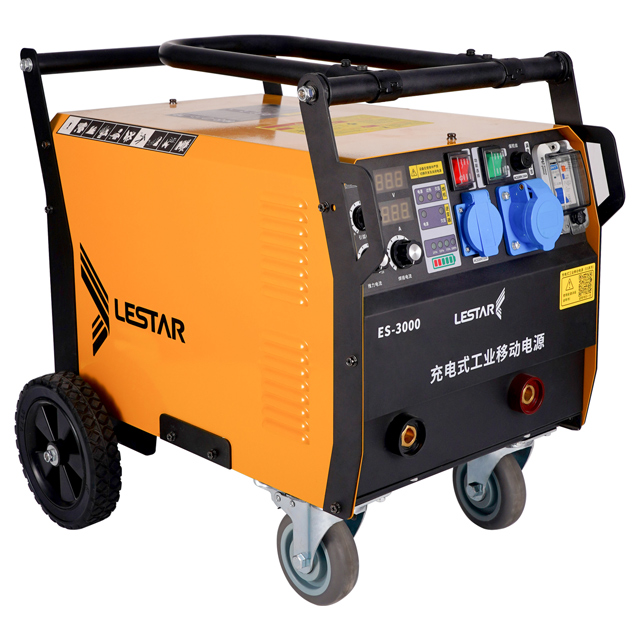

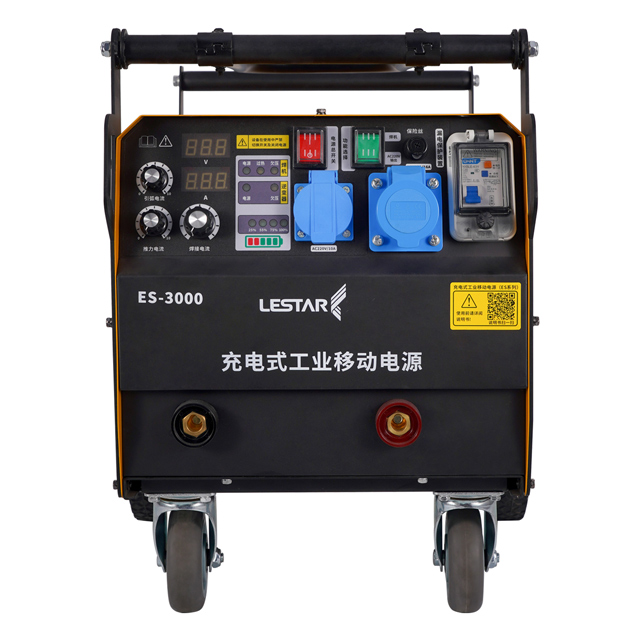

Safely Intelligent Detection Battery Powered Welder

HEAVY-DUTY DESIGN 3848WH BATTERY POWERED WELDER 200A CORDLESS WELDER

With battery powered welder ES-3000, welding jobs like repair welding in the mountains, installations in the countryside or welding operations at exposed locations become much easier than ever before. After fully charging, it can weld 68 pieces of 3.25 mm electrodes or 42 pieces of 4.0mm electrodes. Besides, ES-3000 can deliver AC 220V 3500W electricity power for various types of power tools such as cut-off machine, demolition hammer, air compressor and other home appliances.

Quantity:
Availability:





Inquire Add to Basket

COMPLETELY BATTERY POWERED

Internal built in 3848Whr 72 V lithium ion battery power pack, meets the welding demands and electricity power supply needs of common power tools and other construction equipment.

HEAVY DUTY DESIGN

3.25mm electrodes can weld up to 68 pieces.

4.0mm electrodes can weld up to 42 pieces.

AC 220V(110V optional) 3500W(surge power 7000W) power supply.

HOT-START & ARC FORCE

Both functions ensures easy welding and excellent welding performance.

SAFETY & RELIABILITY

Ultra safe lithium battery , battery unit we are using CATL brand, supplier of BMW, VOLKSWAGON, TOYOTA, JAGUAR and VOLVO.

INTELLIGENT

Battery power indicator

Under-voltage, over-heating alarm.

QUICK CHARGING

Equipped with high efficiency battery charger, charging time 4.0-4.5 hours only.

WARRANTY

All of our products, warranty period is 12 months, during warranty period, if any spare parts problem, we will afford the courier and spare cost.

Intelligent Detection Battery Powered Welder Safely Battery Powered Welder Heavy Duty Battery Powered Welder carbon steel Battery Powered Welder Safely Heavy Duty Battery Powered Welder Safely carbon steel Battery Powered Welder

Product Category

Related Products

LESTAR ES-5000 PLUS BATTERY POWERED WELDER

Power Specifications
Rated output voltage	AC 220 V 50 Hz
Socket specification	1 x EU type F (grounded) IP44, 1 x CEE type Socket 16A
Rated output power	Max. 3,500 W
Surge power	Max. 7,000 W
Overload protection	(20 A)
Battery Specifications
Battery type	Ternary Lithium Ion battery cell
Battery voltage	DC 72 V
Battery capacity	3848 Wh
Battery cooling	Air (4 x automatic air fans)
Welding Specifications
Output current	10-200A
Suitable electrode diameter	1.6-5.0mm
Pieces 4.0mm electrode	42 pieces
Pieces 3.2mm electrode	68 pieces
Charger Specifications
Charger voltage	AC 200-240 V 50/60 Hz
Charger output	72 V (20 A)
Charging time	± 4.5 hours
Charging cycles	1,500 (capacity > 80%)
Working Temperatures
Operating temperature	-20°C up to 40°C
Charging temperature	0°C up to 30°C
Storage temperature	0°C up to 25°C
Dimensions and Weight
Dimensions (L x W x H)	590 x 380 x 530 mm
Weight	51 kg
Other
Ingress protection class	IP21 (indoor)
Warranty	12 months or 300 charging cycles. Whichever comes first.

Power Specifications
Rated output voltage	AC 220 V 50 Hz
Socket specification	1 x EU type F (grounded) IP44, 1 x CEE type Socket 16A
Rated output power	Max. 3,500 W
Surge power	Max. 7,000 W
Overload protection	(20 A)
Battery Specifications
Battery type	Ternary Lithium Ion battery cell
Battery voltage	DC 72 V
Battery capacity	3848 Wh
Battery cooling	Air (4 x automatic air fans)
Welding Specifications
Output current	10-200A
Suitable electrode diameter	1.6-5.0mm
Pieces 4.0mm electrode	42 pieces
Pieces 3.2mm electrode	68 pieces
Charger Specifications
Charger voltage	AC 200-240 V 50/60 Hz
Charger output	72 V (20 A)
Charging time	± 4.5 hours
Charging cycles	1,500 (capacity > 80%)
Working Temperatures
Operating temperature	-20°C up to 40°C
Charging temperature	0°C up to 30°C
Storage temperature	0°C up to 25°C
Dimensions and Weight
Dimensions (L x W x H)	590 x 380 x 530 mm
Weight	51 kg
Other
Ingress protection class	IP21 (indoor)
Warranty	12 months or 300 charging cycles. Whichever comes first.
